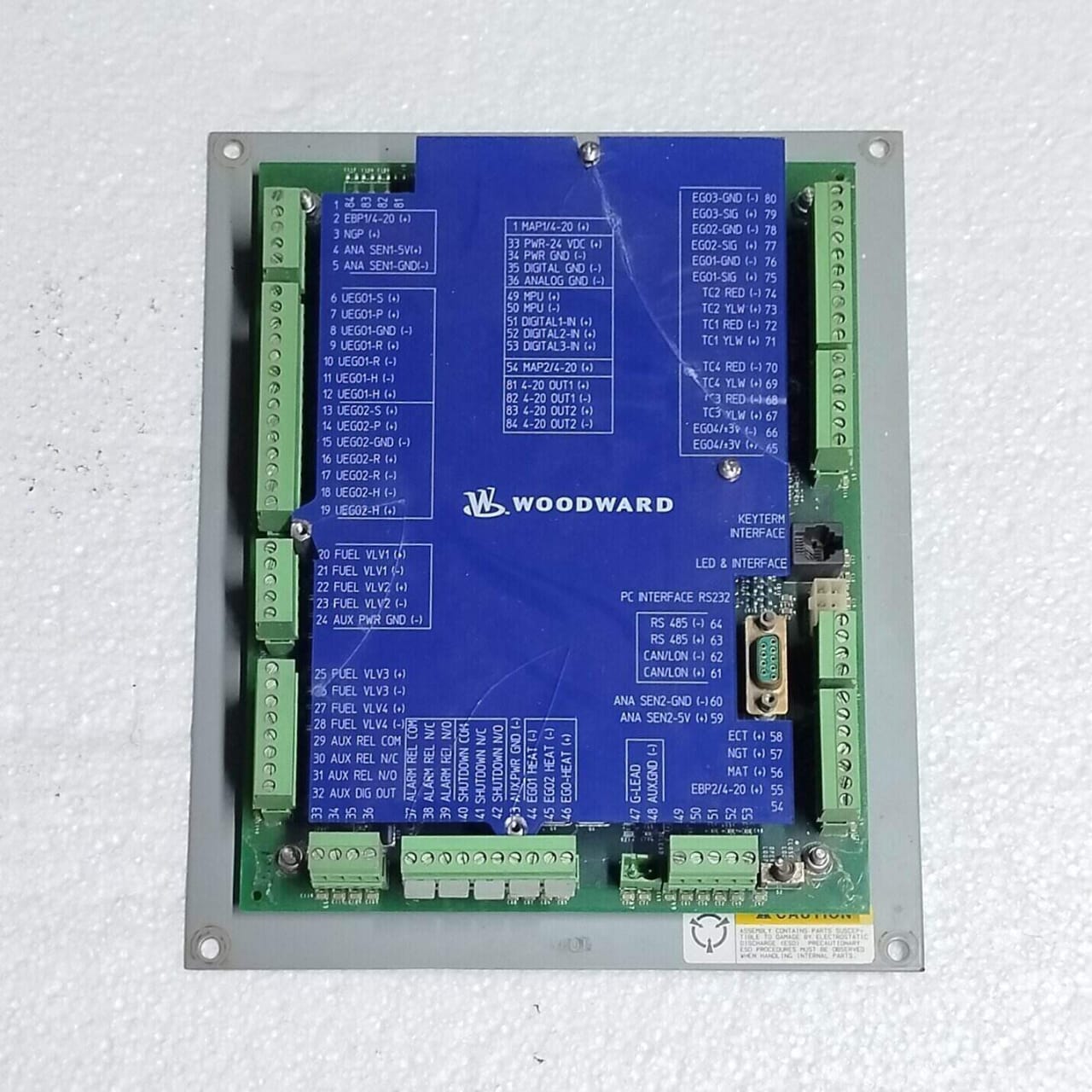

This is a which serveWoodward 9907-018 Keyterm Interface Module,s as a termination and connection point for various industrial control systems.
- Functionality: It provides simplified wiring and terminal access for Woodward digital control systems, facilitating the connection of inputs, outputs, and communication ports.
- Connectivity: The board features multiple terminal blocks for signals such as fuel valve control, analog inputs, and speed sensing, along with dedicated ports for RS-232 and CAN communications.

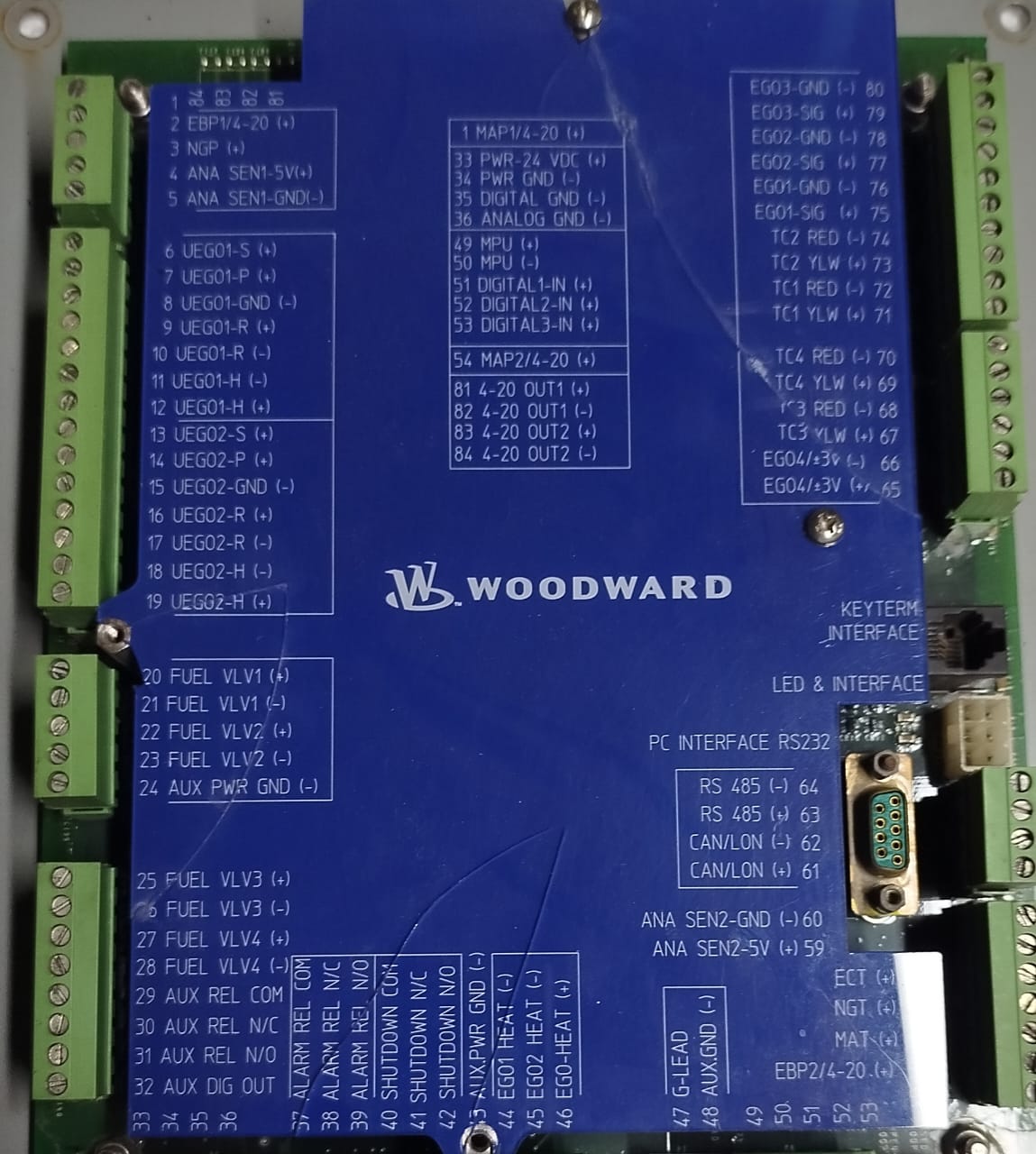

- Design: It includes detailed silk-screened labeling that maps every pin number to its specific function, such as power supply (24 VDC), thermocouples (TC), and MPU speed sensors.
- Application: Commonly used in power generation and industrial engine control environments to organize complex wiring into a centralized, durable interface.
