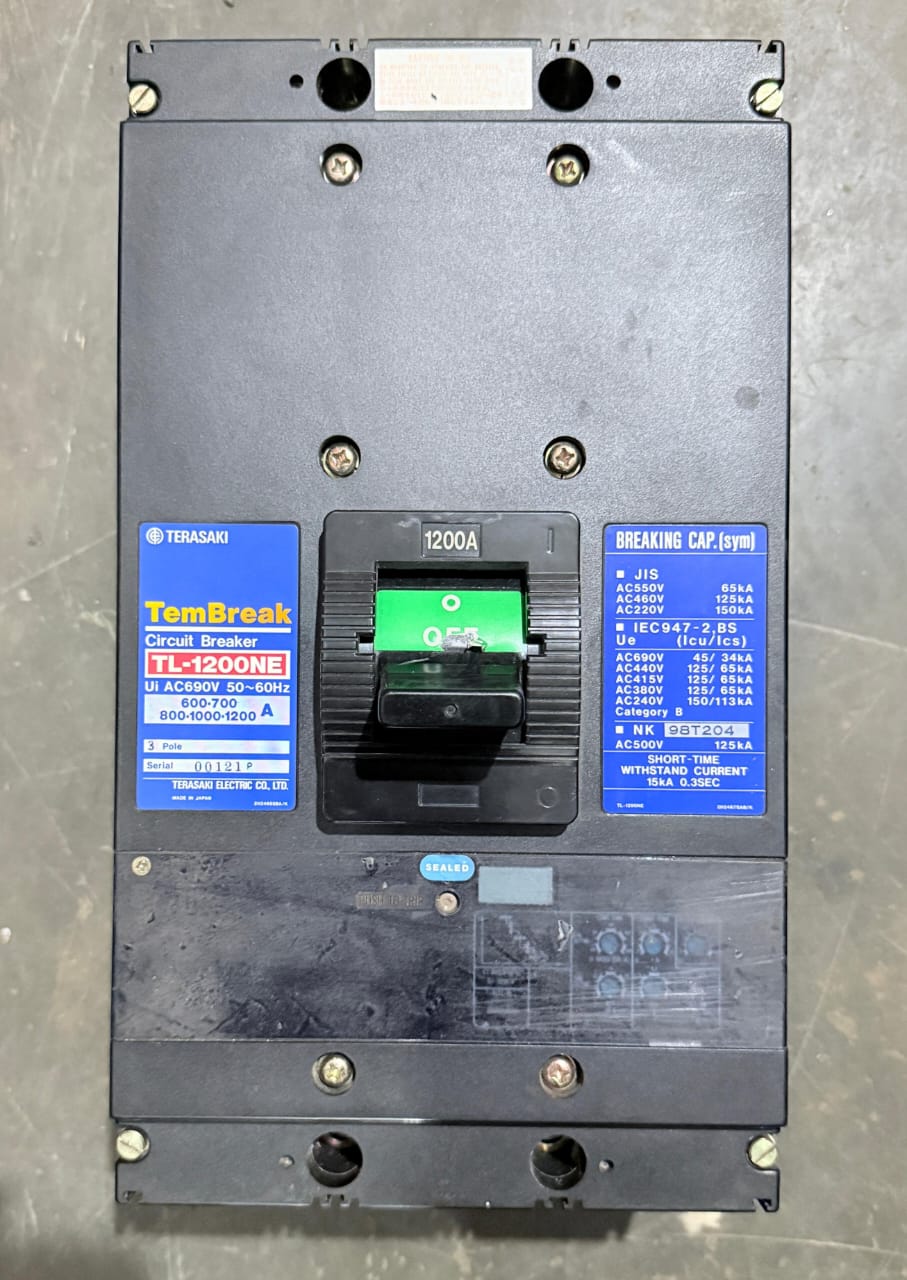

This is a Terasaki TemBreak TL-1200NE 3-Pole Circuit Breaker equipped with a Type XMD 9 Motor Operator.
- Rated Current: Adjustable for 600–700A and 800–1000–1200A ranges, with a maximum frame size of 1200A.
- Voltage Ratings: Rated insulation voltage (
Uicap U sub i
𝑈𝑖
) of AC 690V at 50/60Hz.

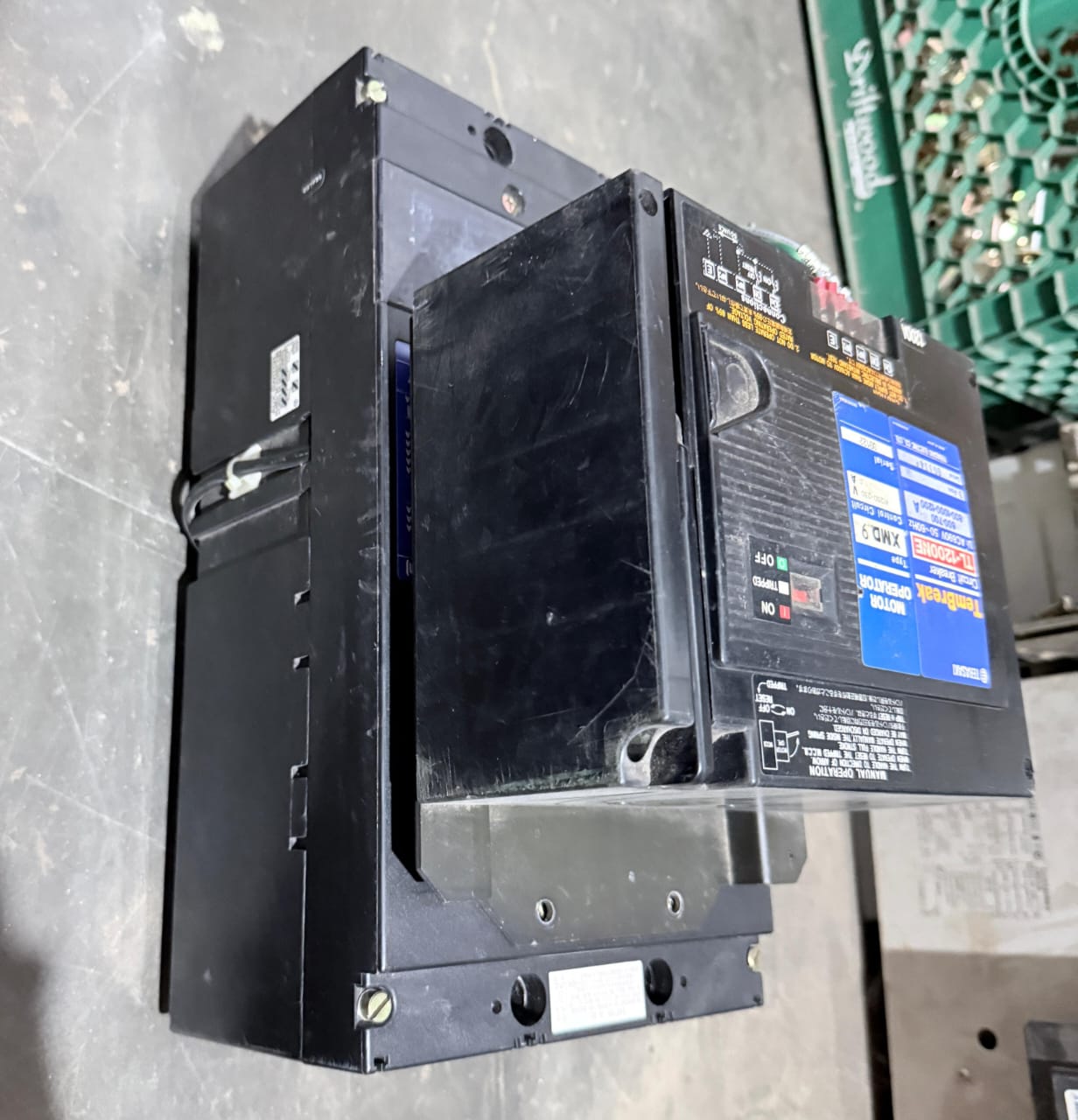

- Motor Operator Specifications: The XMD 9 control circuit operates at AC 200–230V with a 1.0A current draw.
- Manual Override: Features a manual operation handle that requires a full stroke to reset a tripped MCCB or to charge/discharge the internal spring.
